변속 벨트의 특성

1. D形用 SUPER VS BELT

: D40形用의 변속 Belt입니다. Belt 각도 22 ˚ 로서 변속량이 크고 국제규격(ISO), 미국규격(RMA)의 치수에
기준하고 있으며, 양쪽의 치수표시를 하고 있습니다. 내열, 내유, 내측 압성에 뛰어난 고품질의 Belt입니다.

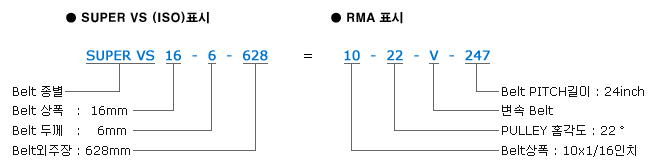

2. 사이즈 호칭

3. 사이즈 표

용량 0.2kW用			용량 0.75kW用			용량 1.5kW用			용량 2.2kW, 3.7kW用
SUPER VS		PULLEY D-40-20 축간거리	SUPER VS		PULLEY D-40-20 축간거리	SUPER VS		PULLEY D-40-20 축간거리	SUPER VS		PULLEY D-40-20 축간거리	PULLEY D-40-20 축간거리
(ISO표시)	(RMA표시)	PULLEY D-40-20 축간거리	(ISO표시)	(RMA표시)	PULLEY D-40-20 축간거리	(ISO표시)	(RMA표시)	PULLEY D-40-20 축간거리	(ISO표시)	(RMA표시)	PULLEY D-40-20 축간거리	PULLEY D-40-20 축간거리
12-5-451	7.522V173	120	22-8-615	1422V235	142	30-10-783	1922V302	-	37-12-945	2322V364	225	-
12-5-501	7.522V193	146	22-8-625	1422V240	147	30-10-813	1922V313	190	37-12-995	2322V384	251	-
12-5-551	7.522V212	171	22-8-648	1422V250	158	30-10-838	1922V321	203	37-12-1030	2322V396	269	-
12-5-571	7.522V220	181	22-8-700	1422V270	186	30-10-863	1922V332	216	37-12-1090	2322V421	300	265
			22-8-755	1422V290	215	30-10-878	1922V338	224	37-12-1120	2322V434	316	281
			22-8-780	1422V300	228	30-10-943	1922V363	258	37-12-1140	2322V441	326	291
			22-8-855	1422V330	266	30-10-988	1922V381	281	37-12-1190	2322V461	352	317
			22-8-880	1422V340	278	30-10-998	1922V386	286	37-12-1240	2322V481	377	343
			22-8-930	1422V360	304	30-10-1043	1922V403	309	37-12-1255	2322V486	385	351
용량 0.4kW用			22-8-1030	1422V400	354	30-10-1078	1922V417	327	37-12-1345	2322V521	430	397
SUPER VS		PULLEY D-40-20 축간거리	22-8-1085	1422V420	382	30-10-1098	1922V426	337	37-12-1395	2322V541	456	422
(ISO표시)	(RMA표시)	PULLEY D-40-20 축간거리	22-8-1135	1422V440	407	30-10-1143	1922V443	360	37-12-1545	2322V601	531	498
16-6-513	1022V196	119	22-8-1185	1422V460	432	30-10-1173	1922V454	375	37-12-1595	2322V621	557	524
16-6-548	1022V210	138	22-8-1200	1422V466	440	30-10-1188	1922V460	383	37-12-1700	2322V661	610	577
16-6-573	1022V220	151	22-8-1210	1422V470	445	30-10-1213	1922V471	395	37-12-1750	2322V681	635	602
16-6-578	1022V223	153	22-8-1235	1422V480	457	30-10-1248	1922V484	413	37-12-1800	2322V701	660	627
16-6-628	1022V247	179	22-8-1390	1422V540	535	30-10-1353	1922V526	466	37-12-1850	2322V721	685	652
			22-8-1540	1422V600	611	30-10-1398	1922V544	489	37-12-2055	2322V801	788	756
			22-8-1690	1422V660	686	30-10-1553	1922V604	567	37-12-2120	2322V826	820	788
			22-8-1845	1422V720	763	30-10-1618	1922V630	599	37-12-2170	2322V846	846	813
			22-8-1995	1422V780	839	30-10-1663	1922V646	622	37-12-2270	2322V886	896	864
						30-10-1708	1922V666	645	37-12-2360	2322V921	941	909
						30-10-1758	1922V686	670
						30-10-1813	1922V706	697
						30-10-1848	1922V721	715
						30-10-1863	1922V726	722
						30-10-1928	1922V751	755
						30-10-1938	1922V756	760
						30-10-2068	1922V806	825
						30-10-2168	1922V846	875
